Cold-Formed Rods with Integral Collars

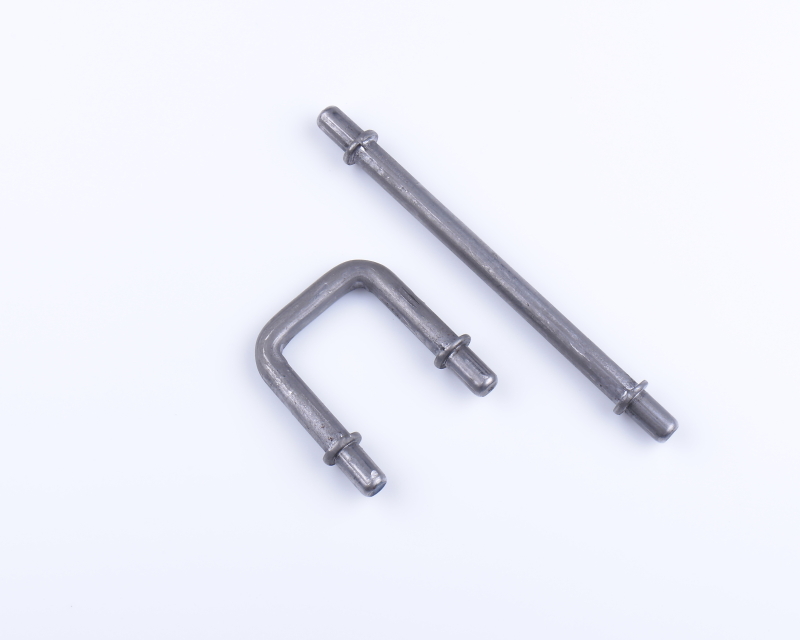

Straight and U-shaped cold-formed metal rods with integral collars near both ends
Straight and U-shaped rods with integral collars formed directly from the rod material by cold forming. The collars and rod body remain one continuous piece, without welded-on rings. Contact Pi Chan Metal to discuss dimensions, collar positions, and manufacturing feasibility.
Cold-Formed Rods with Integral Collars for Custom Assemblies
Cold-formed rods with integral collars combine a metal rod body and raised collar features in one continuous component. The collars are formed directly from the parent material rather than attached as separate rings.
Pi Chan Metal Co., Ltd., based in Changhua, Taiwan, welcomes drawing-based inquiries for these components. Illustrated examples include straight and U-shaped rods with integral collars near both ends.
The appropriate configuration depends on the mating parts, assembly sequence, material, and dimensional requirements. Submit your complete drawing to discuss manufacturing feasibility and purchasing arrangements.
One-Piece Collars Formed Directly from the Rod
Pi Chan forms the raised collars through localized compression of the rod material. The collar and adjacent shank remain part of the same workpiece, without welding on a separate ring.
Cold forming describes deformation without preheating the workpiece. It does not mean that the entire component is necessarily produced in one operation.
The distinction matters when specifying a part: one-piece construction identifies how the collar relates to the rod, while the manufacturing sequence establishes how the complete geometry is achieved.
| Product Characteristic | Description |
|---|---|
| Rod body | Main metal section connecting the component’s features |
| Integral collars | Raised sections formed from the rod itself |
| Construction | Collars and rod remain one continuous piece |
| Collar attachment | No separately welded-on rings |
| Configuration | Straight or bent geometry, subject to drawing review |
| Final specification | Defined by material, dimensions, tolerances, and finish |
For the broader capability, see integral collar forming at Pi Chan Metal.
Straight and U-Shaped Rod Configurations
A straight rod and a U-shaped rod can serve different assembly requirements even when both feature integral collars.
For a straight component, the relationship between the collars, ends, and overall length may control fit. For a U-shaped component, leg spacing, bend geometry, and the location of each collar also require definition.
| Configuration | Dimensions to Define | Assembly Questions |
|---|---|---|
| Straight rod with two collars | Overall length, collar spacing, and end lengths | Where do the collars contact mating parts? |
| U-shaped rod with collars | Leg spacing, bend radius, leg lengths, and collar locations | Can the component be installed without interference? |
| Rod with unequal end lengths | Separate dimensions for each end | Is an asymmetric arrangement required? |
| Drawing-specific variant | Complete finished geometry | Which features control function? |
The photographed products are examples. They do not establish that every diameter, bend, collar size, or material combination is available.
Define Both Collars and Their Relationship
When a rod includes more than one collar, specifying each collar separately may not fully describe the functional requirement. Their spacing and relationship to the rod ends can be equally important.
Identify the faces used for measurement. Collar spacing could refer to the distance between inner faces, outer faces, or center positions; these are different dimensions.
| Collar Requirement | Information to Specify |
|---|---|
| Quantity | Number of integral collars |
| Outside diameter | Required size of each collar |
| Thickness | Axial width of each raised section |
| Position | Location from a defined datum |
| Spacing | Measurement between identified collar references |
| Profile | Edge and transition geometry |
| Functional faces | Surfaces used for seating or location |
| Variation | Whether the collars have matching or different dimensions |
Use a dimension scheme that reflects the assembly function and avoids conflicting requirements.
Check the Installation Sequence Before Selecting an Integral Design
An integral collar is fixed to the rod’s manufactured geometry. Unlike a removable ring, it cannot be detached to allow another component to slide past.
This can affect installation and servicing. Review how each mating part reaches its final position before approving a one-piece design.
For U-shaped rods, also check whether the legs, collars, and bend allow the required installation path.
| Assembly Detail | What to Review |
|---|---|
| Through-holes | Whether the rod and collar can pass where required |
| Recesses | Clearance around the collar and transition |
| Seating surfaces | Correct contact with the intended collar face |
| Mating-part order | Sequence in which components are installed |
| Access | Space available around the rod and bend |
| Servicing | Whether disassembly or adjustment is required |
If the existing design uses adjustable or removable collars, identify those functions before considering an integral alternative.
Drawing Requirements for U-Shaped Rods
For a U-shaped component, clearly distinguish internal spacing, external spacing, and centerline dimensions. State which measurements control the part.
Show both legs individually if they differ in length or collar position. Include the required orientation of any flattened ends, holes, or other features.
| Drawing Item | Information Required |
|---|---|
| Rod diameter | Size and relevant tolerances |
| Bend radius | Required radius and reference |
| Leg spacing | Inside, outside, or centerline measurement |
| Leg lengths | Finished dimensions from defined references |
| Collar locations | Position on each leg |
| Alignment | Required relationship between the legs |
| End details | Shape, dimensions, and orientation |
| Drawing control | Part number, units, and revision |
An assembly view can help explain functional requirements that are not obvious from the component drawing alone.
Material and Finish Requirements
Material suitability must be assessed against both the forming requirements and the finished component’s function.
Specify the required grade and mechanical properties. Avoid identifying material from appearance or ordering only by a broad description such as “steel rod.”
| Requirement | Details to Provide |
|---|---|
| Material | Grade or applicable specification |
| Mechanical properties | Required strength, hardness, or other properties |
| Service conditions | Moisture, temperature, chemicals, or other exposure |
| Surface treatment | Required coating or finish |
| Contact materials | Materials touching the rod and collars |
| Surface quality | Functional and visible surface criteria |
| Verification | Required documentation or testing |
Cold forming and one-piece construction do not automatically establish a particular strength, corrosion resistance, or load rating. Confirm the requirements for the actual part.
Integral Collars Compared with Separate Collars
The choice between an integral feature and a separate collar depends on function. A fixed formed collar may suit a defined seating position, while a separate collar may be needed where adjustment or removal is essential.
| Consideration | Integral Collar | Separate Collar |
|---|---|---|
| Construction | Part of the rod material | Additional component |
| Position | Established during manufacturing | Depends on the attachment design |
| Adjustment | Not intended as an adjustable feature | May be adjustable, depending on design |
| Assembly sequence | Must account for the fixed enlargement | May permit later installation |
| Attachment | No separate collar attachment required | Requires a retention method |
| Suitability | Requires application-specific review | Requires application-specific review |
For projects combining integral collars with fastening features, explore special screw manufacturing.
Inspection and Sample Evaluation
Acceptance criteria should focus on dimensions and characteristics that determine fit and function.
For multi-collar rods, evaluate collar spacing as well as individual collar dimensions. For U-shaped parts, include leg spacing and alignment.
| Inspection Topic | Requirement to Agree |
|---|---|
| Rod dimensions | Diameter and finished lengths |
| Collars | Diameter, thickness, profile, and location |
| Collar spacing | Defined references and permitted variation |
| Bent geometry | Radius, spacing, and alignment |
| End features | Dimensions and orientation |
| Surface condition | Finish and acceptable defect limits |
| Material properties | Required evidence or testing |
| Assembly trial | Seating, clearance, and functional checks |
If samples are supplied, evaluate them with representative mating components and record the approved drawing revision.
Sampling, inspection, testing, and documentation arrangements require confirmation for the specific project.
Related Formed Components
A component may require additional threads, extended length, or a different end configuration. Show these features together on the complete drawing.
For extended-reach inquiries, review extra long screws. For other shaped components, see metal forming and processing.
The feasibility of each feature should be assessed within the complete part rather than assumed from a separate product category.
Request a Quote for Cold-Formed Rods with Integral Collars
Send Pi Chan a dimensioned drawing and explain the role of each collar in the assembly.
Include material, finish, quantity, inspection requirements, and delivery details. If the component replaces a multi-part assembly, provide the current arrangement and the functions the replacement must retain.
| Inquiry Item | Information to Include |
|---|---|
| Drawing | Part number, revision, units, and tolerances |
| Configuration | Straight, U-shaped, or other requested geometry |
| Collars | Quantity, dimensions, locations, and spacing |
| Additional features | Threads, holes, flattened ends, or other details |
| Material and finish | Required grade, properties, and treatment |
| Quantity | Initial order and expected repeat demand |
| Approval | Sample and documentation requirements |
| Delivery | Destination and requested date |
Contact Pi Chan Metal to discuss manufacturing feasibility, tooling requirements, minimum order quantity, pricing, and delivery arrangements.
Cold-Formed Rods with Integral Collars FAQ
What Are Cold-Formed Rods with Integral Collars?
They are metal rod components with raised collars formed from the rod material through a cold-forming process. The collars remain part of the same continuous component rather than being attached as separate rings.
Are the Collars Welded onto the Rod?
For Pi Chan’s integral collar construction, separate welded-on rings are not used. The raised features are formed directly from the parent rod material.
Can Both Straight and U-Shaped Rods Have Integral Collars?
Pi Chan’s product examples include both configurations. Submit the required geometry and material for review. Each combination of dimensions, bends, and collars requires confirmation.
Can a Rod Have More Than One Collar?
The illustrated examples have collars near both ends. For another quantity or arrangement, provide a drawing showing all collars and their dimensional relationships.
How Should Collar Spacing Be Specified?
Identify the measurement references clearly. State whether spacing is measured between inner faces, outer faces, or another defined reference. Choose the dimension that reflects the assembly function.
Can the Two Collars Have Different Dimensions?
Show each collar separately on the drawing. Different sizes or profiles require a feasibility review for the complete component and material.
Can the Collar Position Be Adjusted Later?
An integral collar is a fixed formed feature. It should not be treated as an adjustable shaft collar. Identify any adjustment requirement before selecting this construction.
Can These Rods Replace Parts with Separate Rings?
They may be an option after reviewing geometry, loading, tolerances, installation sequence, and servicing requirements. Validate the proposed replacement against the original function.
Does One-Piece Construction Guarantee Greater Strength?
No. Strength depends on the material, geometry, manufacturing conditions, and loading. A performance comparison requires evidence for the actual designs.
What Must Be Specified for a U-Shaped Rod?
Include rod diameter, bend radius, leg spacing, leg lengths, collar dimensions, collar locations, and alignment requirements. Show any additional end features and their orientation.
Can Threaded Ends Be Included?
Include the thread designation, coverage, and position on the complete drawing. Feasibility must be confirmed for the combination of threads, collars, bends, and material.
What Materials Can Be Used?
Specify the required grade for review. Material formability and finished-part requirements determine suitability. Do not assume every metal can achieve the same geometry.
Are Samples Available Before Production?
Ask about sample availability, cost, and lead time during quotation. If samples are supplied, evaluate them with representative mating parts and agreed acceptance criteria.
What Documents Can Be Requested?
Identify the material, inspection, or testing records required before ordering. Availability, scope, and associated costs must be confirmed for the project.
What Are the Minimum Order Quantity and Lead Time?
They depend on the design, material, tooling, finish, quantity, inspection requirements, and production schedule. Provide the delivery destination and requested date with your inquiry.
