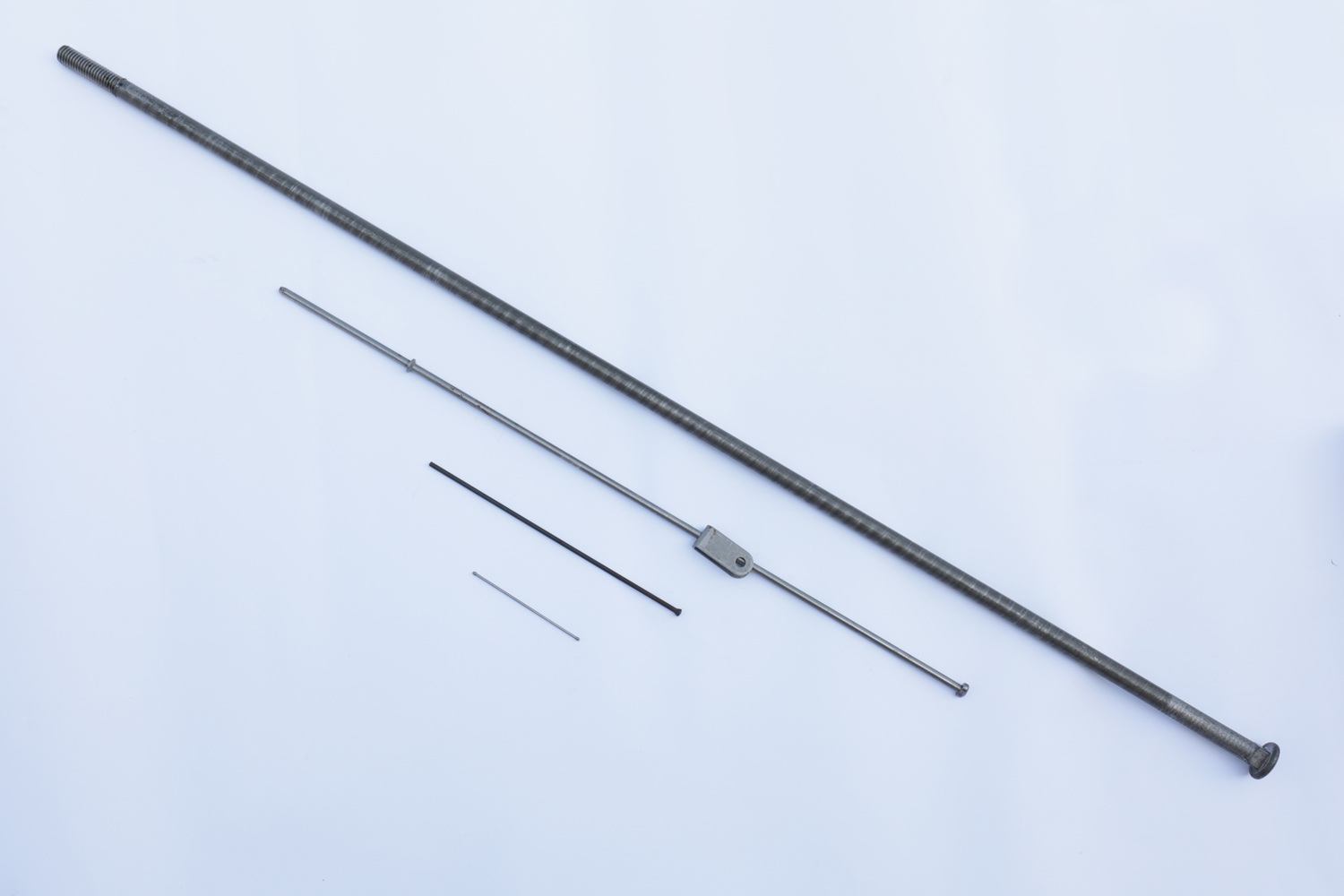

Metal rods in different lengths and diameters with threaded ends and formed features
Custom metal rod forming by Pi Chan Metal in Taiwan. This selection shows rods with different dimensions, threaded ends, and formed features. Submit your drawing to discuss the required geometry, materials, and manufacturing feasibility.
Custom Metal Rod Forming for Drawing-Specific Components
Custom metal rod forming produces rod components with geometry defined for a particular assembly. Instead of selecting only by diameter and length, buyers specify the bends, raised features, ends, and dimensional relationships required for the part to function.
Pi Chan Metal Co., Ltd., based in Changhua, Taiwan, welcomes drawing-based inquiries for formed metal rods. Product examples include straight rods, U-shaped rods, integral collars, threaded sections, and formed end features.
A distinctive capability is forming a raised collar directly from the rod material. The collar and rod remain one continuous piece, without welding on a separate ring.
Submit your drawing to discuss the complete configuration, material, quantity, and manufacturing feasibility.
Custom Rod Geometry Starts with the Assembly
The most useful starting point is the component’s function. Explain where the rod fits, what it contacts, and which features control its position.
A straight rod with a threaded end has different requirements from a U-shaped component or a rod with a fixed collar. Even similar-looking parts can differ in critical dimensions and installation sequence.
| Rod Configuration | Details to Define | Assembly Consideration |
|---|---|---|
| Straight rod | Diameter, length, straightness, and ends | Alignment and available clearance |
| Bent rod | Bend radius, angle, and orientation | Relationship between connected components |
| U-shaped rod | Leg spacing, leg lengths, and bend geometry | Fit around or between mating parts |
| Rod with integral collar | Collar size, location, and profile | Positioning and contact requirements |
| Rod with threaded section | Thread designation, coverage, and position | Compatibility with the mating thread |
| Rod with formed ends | End shape, dimensions, and orientation | Connection and installation requirements |
These configurations are starting points for review. Availability must be confirmed for the complete combination of features.
Integral Collars Formed Directly from the Rod
Pi Chan’s integral collar forming capability creates a raised feature through localized compression of the parent rod material.
The collar is part of the rod itself. It is not a separate ring fitted or welded onto the shank.
This construction may be worth evaluating where a design requires a fixed stop, locating feature, or raised contact surface. The proposed geometry must still meet the application requirements.
| Integral Collar Detail | What to Specify |
|---|---|
| Outside diameter | Finished collar diameter and tolerance |
| Thickness | Axial width of the raised feature |
| Position | Distance from a defined reference |
| Profile | Edge and transition geometry |
| Functional face | Surface that locates or contacts another component |
| Adjacent sections | Rod dimensions on either side |
| Performance requirements | Relevant loading and acceptance criteria |
Learn more about integral collar forming at Pi Chan Metal.
One-piece construction describes how the feature relates to the rod. It does not automatically establish greater strength or a particular load rating.
Specify Bends, Spacing, and Orientation Clearly
A bent component requires more than an overall length. The drawing should define how each section relates to the others.
For U-shaped rods, identify leg spacing, leg length, bend geometry, and any required alignment. State whether dimensions refer to internal surfaces, external surfaces, or centerlines.
Where the two legs differ, dimension each separately. Show how collars or end features are positioned relative to the bend.
| Geometry Item | Information Required | Why It Matters |
|---|---|---|
| Bend radius | Defined radius and reference | Controls the curved section |
| Bend angle | Required angle and tolerance | Establishes section orientation |
| Leg spacing | Inside, outside, or centerline dimension | Determines fit with mating parts |
| Leg length | Reference and finished dimension | Controls installation reach |
| Planar alignment | Required relationship between sections | Affects assembly fit |
| Feature orientation | Position of holes, flats, or ends | Defines connection alignment |
Use the reference that best reflects the part’s function and keep the drawing dimension scheme consistent.
End Features and Threaded Sections
A formed rod may require different features at each end. Show the complete finished configuration rather than describing the ends independently.
Pi Chan’s illustrated products include rods with formed ends and threaded sections. Each requested design requires review against its material, dimensions, and manufacturing requirements.
| Feature | Drawing Information to Include |
|---|---|
| Threaded end | Thread system, diameter, pitch, tolerance, and length |
| Flattened end | Width, thickness, length, and orientation |
| End hole | Diameter, position, and relevant tolerances |
| Raised or enlarged end | Profile and finished dimensions |
| Collar near an end | Collar location and adjacent geometry |
| Different end configurations | Separate dimensions and orientation references |
For parts combining rod forming with fastening features, see special screw manufacturing.
Material and Finish Selection
Specify the required material grade and finished-part properties. Broad descriptions such as “steel rod” or “stainless rod” leave important requirements unresolved.
Material selection must support both the proposed forming geometry and the intended service conditions.
Surface treatment should be identified separately. Describe moisture, temperature, chemicals, or contact with other materials where these affect the specification.
| Requirement | Details to Provide |
|---|---|
| Material | Grade or applicable specification |
| Mechanical properties | Required strength, hardness, or other properties |
| Surface treatment | Coating or finish designation |
| Exposure | Indoor, outdoor, humid, or other conditions |
| Contact materials | Materials touching the component |
| Surface quality | Functional and appearance criteria |
| Documentation | Required records or testing |
Do not identify material or corrosion performance from appearance alone. Confirm availability for the complete design before approval.
Tolerances Should Follow Function
Identify the dimensions that determine assembly fit, location, or contact. A collar position may be critical in one component, while leg spacing may control another.
Use clear datums and avoid conflicting dimensions. If straightness or alignment matters, specify the requirement and measurement reference.
Unnecessarily tight tolerances can restrict manufacturing options. Conversely, leaving a functional dimension undefined can lead to disagreement during inspection.
For long components, also discuss handling and measurement conditions where these influence acceptance.
Review the Complete Part Before Production
A custom rod should be reviewed as a complete component. A feasible bend, thread, and collar do not automatically mean every combination can be produced together.
The manufacturing review should consider their dimensional relationships, material compatibility, and inspection requirements.
| Review Stage | Information to Agree |
|---|---|
| Initial inquiry | Drawing, application, quantity, and delivery needs |
| Specification review | Geometry, material, finish, and tolerances |
| Feasibility discussion | Proposed feature combination and unresolved requirements |
| Quotation | Agreed scope, tooling if applicable, and commercial terms |
| Sample evaluation | Availability, method, and acceptance criteria |
| Production approval | Controlled drawing revision and requirements |
| Repeat order | Part identification and any approved changes |
Sampling, tooling, and inspection arrangements require confirmation for the specific project.
Inspection and Assembly Evaluation
Define acceptance criteria before samples or production parts are evaluated.
Dimensional checks should reflect the drawing. Assembly trials should use representative mating parts and the intended installation method.
| Inspection Topic | Requirement to Agree |
|---|---|
| Rod body | Diameter, length, and straightness |
| Bends | Radius, angle, spacing, and alignment |
| Integral collars | Diameter, thickness, profile, and position |
| End features | Dimensions, holes, and orientation |
| Threads | Specification and inspection method |
| Surface | Finish and acceptable defect limits |
| Material properties | Required evidence or testing |
| Assembly fit | Seating, clearance, and functional checks |
If samples are supplied, record the drawing revision and approval results. Visual similarity alone does not establish dimensional or functional conformity.
Extended-Length Rod Requirements
Extended-length components may need particular attention to straightness, handling, packaging, and storage.
Include these requirements in the inquiry, especially when the rod must pass through several mating components or fit within restricted space.
For related extended-reach products, explore extra long screws. Confirm the complete configuration rather than applying a general product range to every formed-rod design.
Request a Custom Metal Rod Forming Quote
Send a dimensioned drawing and explain the component’s function. Include mating-part details when fit, seating, or installation access is important.
If the proposed part replaces an existing assembly, provide the current arrangement and identify the requirements the replacement must retain.
| Inquiry Item | Information to Include |
|---|---|
| Drawing | Part number, revision, units, and tolerances |
| Rod geometry | Diameters, lengths, bends, and spacing |
| Integral features | Collar dimensions and positions |
| End details | Threads, holes, flats, or other features |
| Material and finish | Required grade, properties, and treatment |
| Quantity | Initial order and expected repeat demand |
| Approval | Sample, inspection, and documentation requirements |
| Delivery | Destination and requested date |
For other formed-product configurations, visit metal forming and processing.
Contact Pi Chan Metal to discuss feasibility, minimum order quantity, tooling requirements, pricing, and delivery arrangements.
Custom Metal Rod Forming FAQ
What Is Custom Metal Rod Forming?
It is the production of metal rod components with drawing-specific geometry. Requirements may include bends, integral collars, shaped ends, and other features. The manufacturing route depends on the complete component specification.
What Types of Rod Shapes Can Be Reviewed?
Pi Chan’s product examples include straight and U-shaped rods, along with rods featuring collars, threaded sections, and formed ends. Submit the required geometry for review rather than assuming every combination is available.
Can a Collar Be Formed Directly from the Rod?
Pi Chan’s described capability includes forming a raised collar from the parent rod material through localized compression. The collar and rod remain one continuous piece without a separately welded-on ring.
Can the Two Ends Have Different Features?
Show each end separately on the drawing, including its dimensions and orientation. Feasibility depends on the complete design, material, and manufacturing requirements.
What Information Is Needed for a U-Shaped Rod?
Provide rod diameter, bend geometry, leg spacing, leg lengths, end features, and tolerances. State whether spacing dimensions refer to internal surfaces, external surfaces, or centerlines.
Can Threads Be Included on a Formed Rod?
Include the thread designation, coverage, and position in the complete drawing. The combination of threads, bends, collars, and material must be reviewed before supply can be confirmed.
Can Pi Chan Work from an Existing Sample?
A sample can help explain the shape, but it may not establish the original material, tolerances, or mechanical properties. Agree on a controlled specification before production.
Are Photographs Enough for a Quotation?
Photographs help identify general features but do not reliably define dimensions or acceptance criteria. Provide a drawing or measured information together with the application requirements.
Which Material Should I Specify?
Use the grade required by the component design. Formability, finished-part properties, and the service environment all matter. Material suitability must be reviewed against the proposed geometry.
Does Custom Forming Mean the Part Is Made in One Operation?
No. The finished component may require several operations. One-piece construction describes the continuous component, not the number of manufacturing steps.
Can a Formed Rod Replace a Welded Assembly?
It may be an option after reviewing geometry, material, loading, and installation sequence. Validate the proposed replacement against the original functional requirements before approval.
How Should Tolerances Be Defined?
Identify the dimensions that control fit and function. Use clear references for collar locations, bends, and ends. Specify straightness or alignment requirements when they affect the assembly.
Are Samples Available Before Production?
Ask about availability, cost, and lead time during quotation. If samples are supplied, evaluate them with representative mating components and agreed acceptance criteria.
Can Inspection Documents Be Requested?
Specify the records required for your project before ordering. Availability, scope, and any associated cost must be confirmed. Do not assume every quotation includes all test reports or material documents.
What Determines Minimum Order Quantity and Lead Time?
The design, tooling, material, finish, quantity, inspection requirements, and production schedule affect the quotation. Include your delivery destination and required date when submitting an inquiry.
