Metal Rod with Integral Collar

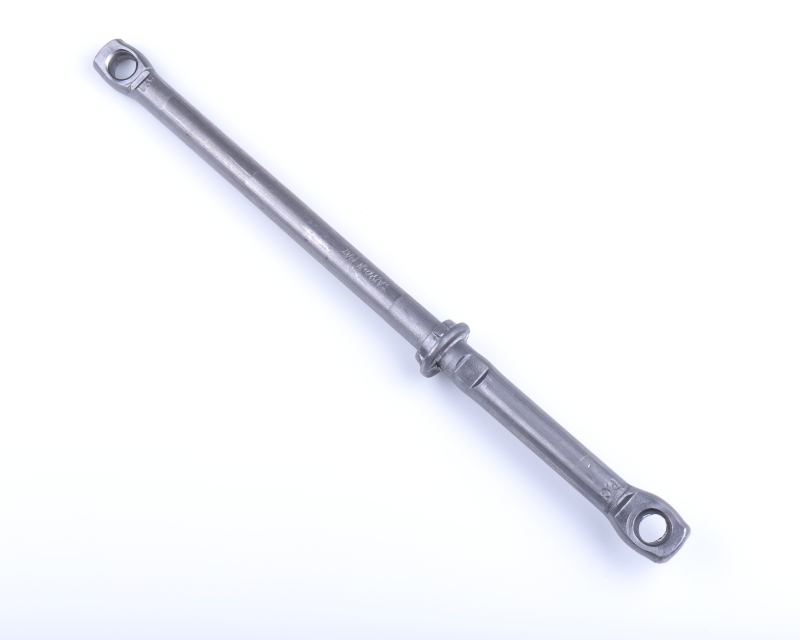

Metal rod with an integral collar and flattened eye ends with mounting holes
Metal rod featuring an integrally formed collar and flattened eye ends with mounting holes. The raised collar is formed directly from the rod material without welding on a separate ring. Contact Pi Chan Metal to discuss rod dimensions, collar position, and end-hole requirements.
Metal Rod with Integral Collar for Drawing-Specific Components
A metal rod with an integral collar features a raised section formed directly from the rod material. The collar and shank remain one continuous piece, without a separate ring welded or assembled onto the rod.
Pi Chan Metal Co., Ltd., based in Changhua, Taiwan, forms integral collars through localized compression of the rod material. This capability allows buyers to explore a one-piece component when their design requires a raised feature at a defined position along a metal rod.
The correct specification depends on the collar’s function, the mating components, and the required material and dimensions. Submit your drawing to discuss manufacturing feasibility and purchasing requirements.
For an overview of the manufacturing approach, visit integral collar forming at Pi Chan Metal.
What Is a Metal Rod with an Integral Collar?
The collar is an enlarged section of the rod body. Its outside diameter is greater than that of the adjacent shank, creating a raised feature that may interact with another component.
The word “integral” describes the construction: the collar comes from the rod itself. It is not an additional part fitted over the rod.
| Product Feature | Description | What to Specify |
|---|---|---|
| Rod body | Main elongated section | Diameter, length, and tolerances |
| Integral collar | Raised feature continuous with the rod | Diameter, thickness, and profile |
| Collar location | Position along the rod | Distance from a defined reference |
| Transition areas | Geometry between collar and shank | Relevant radii and clearance requirements |
| End features | Drawing-specific details at the rod ends | Dimensions and orientation |
| Surface condition | Finished surface of the component | Treatment and acceptance criteria |
A collar’s purpose should be explained in the inquiry. This helps identify which dimensions and surfaces require particular attention.
Directly Formed from the Rod Without Welding
Pi Chan forms the collar by applying localized compression to the metal rod. Material is displaced into the raised profile, leaving the collar and rod as one continuous component.
This construction avoids attaching a separate ring for the collar feature. It also makes the collar position a fixed part of the manufactured geometry.
A one-piece design may be worth reviewing when an existing assembly uses a separate collar. However, it must meet the same functional requirements before it can be approved as a replacement.
| Construction Detail | Integral Collar Rod |
|---|---|
| Collar material | Formed from the parent rod material |
| Separate collar ring | Not used for the integral feature |
| Welded collar joint | Not required |
| Collar position | Fixed by the approved design |
| Dimensional requirements | Defined on the part drawing |
| Performance | Established for the actual application |
One-piece construction does not automatically establish a strength advantage, load rating, or service life. Those properties require evaluation against the complete specification.
Potential Functions of an Integral Collar
An integral collar can provide a defined raised feature within an assembly. Depending on the design, it may act as a stop, establish an axial position, or provide a contact surface.
The function determines which dimensions matter most. For example, a locating feature may require careful control of its position, while a clearance-sensitive assembly may depend on collar diameter.
| Intended Function | Relevant Design Details | Questions to Resolve |
|---|---|---|
| Axial stop | Contact face and collar position | Where should movement stop? |
| Locating feature | Position relative to other features | What reference controls assembly location? |
| Seating surface | Collar profile and mating geometry | Which surface contacts the adjacent component? |
| Spacing feature | Axial dimensions within the assembly | What distance must be maintained? |
| Separate-part replacement | Existing collar and attachment arrangement | Can the one-piece design meet the original requirements? |
These are possible design functions rather than approved applications. Suitability must be established for the proposed component.
Key Dimensions for a Metal Rod with Integral Collar
Specify the complete finished part rather than only the collar size. The rod, collar, transitions, and any end features must work together.
Use a clear reference for the collar’s location. Avoid conflicting dimensions that leave uncertainty about which measurement controls the part.
| Dimension | Information Required | Practical Importance |
|---|---|---|
| Overall length | Finished length with units | Defines the complete component |
| Rod diameter | Diameter of each relevant section | Controls fit with mating parts |
| Collar outside diameter | Finished diameter and tolerance | Determines radial clearance |
| Collar thickness | Axial width | Affects seating and assembly space |
| Collar position | Distance from a specified datum | Establishes functional location |
| Transition geometry | Required profile near the collar | Prevents interference with mating parts |
| Straightness | Requirement and inspection reference, if needed | Matters in alignment-sensitive assemblies |
| End geometry | Required shape and dimensions | Defines connection or installation details |
Mark critical dimensions clearly. Requirements should reflect the component’s function rather than applying the tightest tolerance to every feature.
Collar Position and Mating-Part Clearance
The collar may need to seat against a plate, fit inside a recess, or stop against another component. Include the mating geometry when submitting a drawing.
Check clearance around the collar and its transition areas. A mating hole that clears the shank may still interfere with the enlarged feature.
If one face of the collar performs the locating or seating function, identify that face. Show its relationship to the rod end or other controlled features.
| Assembly Detail | What to Review |
|---|---|
| Mating hole | Clearance around the rod |
| Collar recess | Clearance around the raised feature |
| Contact face | Required seating location |
| Transition area | Space for the collar-to-shank profile |
| Adjacent components | Interference during assembly and operation |
| Installation sequence | Whether the one-piece collar affects how parts are assembled |
A fixed integral collar can change the assembly sequence compared with a removable collar. Review this before approving a replacement design.
Material and Finish Requirements
Material selection affects both forming feasibility and finished-part performance. Identify the required grade and properties instead of relying only on a general description such as “metal rod.”
Describe the operating environment and any contact with other materials. Surface treatment should be specified separately from the base material.
| Requirement | Details to Provide |
|---|---|
| Material | Grade or applicable material specification |
| Mechanical properties | Required strength, hardness, or other properties |
| Exposure | Moisture, temperature, chemicals, or outdoor conditions |
| Surface treatment | Coating or finish designation |
| Contact materials | Materials touching the rod and collar |
| Surface quality | Functional and appearance requirements |
| Documentation | Required material or inspection records |
Material, finish, geometry, and tolerances must be reviewed together. Availability should not be assumed for every requested combination.
Threaded Sections and Additional Features
Some designs combine an integral collar with a threaded end, head, or other formed feature. Show these details on the same drawing so their dimensional relationships can be assessed.
For a threaded section, specify the thread designation, coverage, and distance from the collar. Confirm that the thread transition will not interfere with the mating components.
Pi Chan’s special screw manufacturing page provides a related starting point for components that combine fastening and formed features.
For extended-length requirements, review extra long screws and submit the complete configuration for feasibility review.
Inspection and Sample Approval
Inspection requirements should focus on measurable features that affect fit and function.
If samples are supplied, evaluate them with representative mating components. Confirm collar seating, clearance, location, and any relevant operating requirements.
| Inspection Item | Acceptance Requirement to Agree |
|---|---|
| Rod dimensions | Length, diameter, and permitted variation |
| Collar dimensions | Outside diameter, thickness, and profile |
| Collar position | Datum and measurement method |
| Alignment | Relevant straightness or geometric requirements |
| Additional features | Threads, heads, or end details |
| Surface condition | Finish and acceptable defect limits |
| Material properties | Required evidence or testing |
| Assembly evaluation | Fit and functional acceptance criteria |
These are topics to agree with the supplier. Sampling, testing, and documentation arrangements require confirmation for each project.
Retain the approved drawing revision and acceptance records for repeat orders.
Request a Quote for a Metal Rod with Integral Collar
Provide a dimensioned drawing together with the application, quantity, and delivery requirements. Explain what the collar does and identify the dimensions that control that function.
If the proposed part replaces an existing assembly, include the current drawing or sample information and any requirements the replacement must meet.
| Inquiry Item | Information to Include |
|---|---|
| Drawing | Part number, revision, dimensions, and units |
| Collar geometry | Diameter, thickness, position, and profile |
| Rod geometry | Length, diameters, and additional features |
| Material and finish | Required grade, properties, and treatment |
| Application | Function and mating-component details |
| Quantity | Initial order and expected repeat demand |
| Approval | Sample, inspection, and documentation requirements |
| Delivery | Destination and requested date |
Contact Pi Chan Metal to discuss manufacturing feasibility, tooling requirements, minimum order quantity, pricing, and delivery arrangements.
Metal Rod with Integral Collar FAQ
What Is a Metal Rod with an Integral Collar?
It is a rod with a raised collar that forms part of the same continuous component. In Pi Chan’s forming approach, the collar is created directly from the rod material rather than attached as a separate ring.
Is the Collar Welded onto the Rod?
No separate ring is welded onto the rod for the integral collar feature. Localized compression forms the raised section from the rod itself.
What Is the Difference Between an Integral Collar and a Separate Shaft Collar?
An integral collar is fixed within the rod’s manufactured geometry. A separate shaft collar is an additional component attached to the shaft or rod. Installation, adjustment, and retention requirements can differ.
Can the Collar Be Positioned in the Middle of the Rod?
Submit the required position and complete dimensions for review. Pi Chan’s described capability includes raised features along the rod body, but each configuration requires a manufacturing feasibility assessment.
Can I Adjust the Collar Position Later?
An integrally formed collar is not an adjustable component. Its position must be specified before manufacturing. If adjustment is necessary during use, discuss that functional requirement before selecting the construction.
Can an Integral Collar Replace a Welded Collar?
It may be possible after reviewing the existing design. Compare geometry, tolerances, material, loading, and assembly sequence. The replacement must be validated against the actual requirements.
Is an Integral Collar Rod Stronger Than a Welded Assembly?
A universal strength comparison cannot be made from construction alone. Material, geometry, processing, and loading conditions all affect performance. Any strength claim needs supporting evidence for the particular designs.
What Dimensions Should I Provide?
Include overall length, rod diameter, collar diameter, collar thickness, collar position, and transition geometry. Add any threads, end features, tolerances, and inspection references that affect the application.
Which Surface Should Define the Collar Position?
Use the surface or datum that reflects the part’s function. This may be a rod end, the underside of a head, or another controlled feature. Identify the functional collar face where seating or location is important.
Can Threaded Ends Be Included?
Show the required thread designation, length, and position relative to the collar. Feasibility must be reviewed for the complete combination of dimensions, material, and formed features.
What Materials Can Be Used?
Specify the required material grade for review. Formability and finished-part requirements determine suitability. Do not assume every material can achieve the same collar dimensions or tolerances.
Can the Product Be Used Outdoors?
Outdoor suitability depends on the material, finish, exposure, and connected components. Describe the service conditions and required performance when submitting an inquiry.
Can I Submit a Sample Without a Drawing?
A sample can help explain the shape, but it may not establish material grade, original tolerances, or mechanical properties. Agree on a controlled specification before manufacturing.
Are Samples Available Before a Production Order?
Ask about sample availability, cost, and lead time during quotation. If samples are supplied, evaluate them using representative mating parts and agreed acceptance criteria.
What Are the Minimum Order Quantity and Lead Time?
They depend on the geometry, material, tooling, finish, quantity, and production schedule. Include the delivery destination and required date when requesting a quotation.
